Detailed Product Description

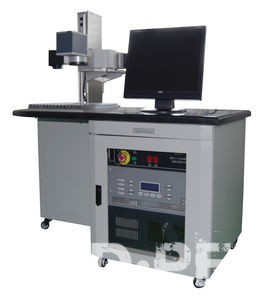

Switch panel marking machine
low running cost,
easy to install and operate,
good stabilization,
free of maintance
Equipment Performance
That equipment is design and development by Wuhan sunic photoelectricity equipment manufacture Co., ltd. it is have quality and low cost diode solid laser module,TEM00 laser module,20000hours free of maintenance ,it is widely used in industry marking and engraving. The software which developed by Wuhan sunic laser can compatible software output of AutoCAD, CorelDRAW ,photoshop, signs, graphs ,images ,bar codes, two dimensional codes .automatically increased serial numbers ,It can support various file formats like PLT,PCX,DXP,BMP,JPG and so on .It may use TIF fonts directly ,can meet demand of massive on-line and off-line industrialized production.
Applicable fields
The machine is widely applied in electronic component ,the communication ,the spare parts of automobiles and motorcycles ,instrument and meter ,aerospace ,war product ,hardware and machinery ,measuring and cutting tools sanitary equipment ,medication ,food and beverage ,cosmetics, drugs packing ,medical appliance ,solar energy , handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic material.
Optional configuration
Online flying marking, Rotary marking.
Main technical parameters
|
Type specification
|
SEM10
|
|
Wave length
|
1064nm
|
|
Laser power
|
10W
|
|
Laser repetition frequency
|
20Hz~100kHz
|
|
Marking speed
|
7m/s
|
|
Min focus facula diameter
|
20um
|
|
Repetition precision
|
0.0025mm
|
|
Marking scope
|
70×70mm or 100×100mm
|
|
Power supply
|
220V/50Hz
|
|
Cooling way
|
Force-air cooling
|
|
consumption
|
1000W
|
