Detailed Product Description

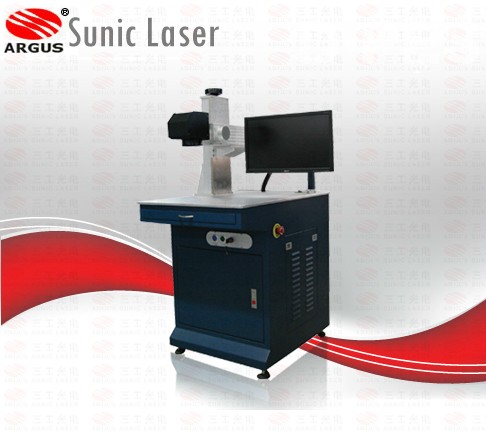

laser bracelet marking machine
1.Long life
2.Free Maintenance
3.Small, space-saving
4.Good stabilization
laser bracelet marking machine
Applicable fields
Electronics component, the communication, the spare parts of automobiles and motorcycles, hardware and machinery, instrument and meter, aerospace, war product,fodd and beverage etc.
Available Materials
Stainless, Silver, Gold , Bamboo, Paper, Plastic, Mood, Glass, PVC, and so on.
Specification
|
Type specification
|
SFM10/20
|
|
Laser mode
|
Base mold
|
|
Wave length of laser
|
1.064μm
|
|
Laser repetition frequency
|
20kHz~100kHz
|
|
Laser power
|
10/20W
|
|
Marking scope
|
70×70 /100×100 /200×200 /300×300mm
|
|
Laser sources
|
Fiber module ( imported )
|
|
Laser Head
|
Scanning head (imported)
|
|
The minimum focus facula diameter
|
20μm
|
|
Minimal character
|
0.01mm
|
|
Marking speed
|
≤8000mm/s
|
|
Repeated accuracy
|
0.0025mm
|
|
Cooling ways
|
Force-air Cooling
|
|
Power supply
|
220V/ 50Hz/2kVA
|
|
Net weight
|
56KG
|
|
Volume
|
0.36 m3
|
|
Process Material
|
All kinds of metal and part of Non-metal Materials
|
|
Support format
|
PLT, BMP, DXF, JPG, TIF, AI etc
|
|
Package
|
Standard Crate for export
|
|
The whole machine include
|
LCD display, controller box ,laser systems,
|
|
Configuration
|
Coaxial red light position system
Up & down worktable
Cover protection
|
|
Accessory box
|
Microsoft dog, quality certificate etc.
|
Would you tell me your demand in details? So that we can help you choose what you want.
1.What materials is to processed normally? What size is the working area?
