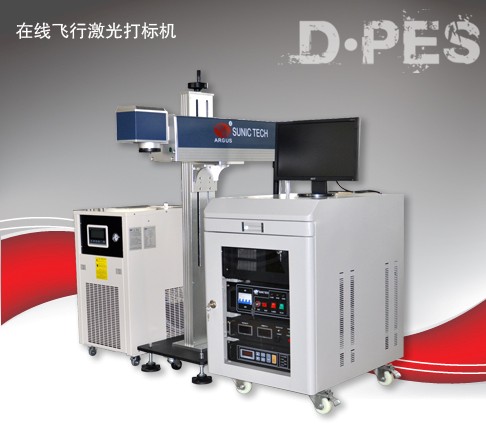

Product Name:Online flying laser marking machine

Product Details:
Model:
SDE02A
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 0.00-0.00 /
Shipping Terms:
1
Shippment Port:
Guangzhou/Shanghai
Payment Terms:
L/C ,T/T,Western Union
Show Buyers your Ability to Supply:
Production Capacity:
2 Cubic Meter/Cubic Meters per 3 days
Delivery Time:
Packaging:
Standard plywood case for export

Detailed Product Description:

Detailed Product Description

To meet your different marking requirements
Wide range of applications
Convenient and flexible operating system

Equipment Performance



1 Adopt diode side pump laser as pump headstream.

2 Laser beam with high quality. Work continuously over 24 hours.

3 Low running cost, fast scribing speed and higher precision.

4 Easy to install and operate. good stabilization,free of maintenance

5 Imported key spare parts,simple structure for whole machine.



Applicable fields



1 Scribing for the mono-crystalline sillicon, poly-crystalline sillicon,amorphous-crystalline sillicon,solar cell,wafer in solar industry.

 2 Cutting for the mono-crystalline sillicon and poly-crystalline sillicon in electronic industry.



Technical  Information



Technical Index

Technical Parameter

Type specification

SDS50

Wave lengh of laser

1064nm

Laser power

50W

Laser repetition frequency

200hz-50khz

Max scriber speed

140mm/s

Scriber line width

30μm

Work platform size

350*350mm

Power supply

380V(220V)/50HZ/5KVA

Cooling ways

Outside suspension type constant temperature circulation water cooling

Working temperature

0-35°C

Working humidity

5-95%

Package

Standard Crate for export

Work platform

The adsorption of double gas warehouse vacuum,the T-model platform is double position works in turn

The whole machine include

Air pump

Exhausting Fan

water chiller

Accessory box

tools, pipes, quality certificate etc.

Delivery time

10 working days

Payment term

30% deposit in advance, balance before shipment
