Detailed Product Description

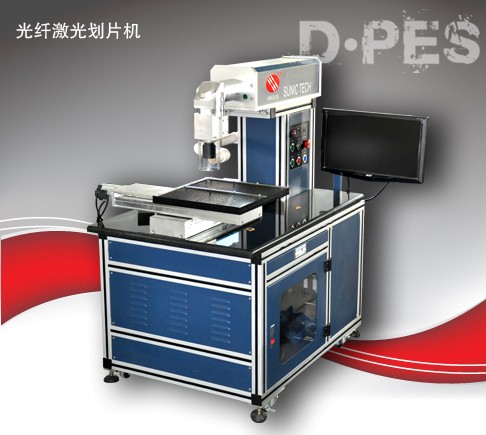

It consists of IPG laser and raylans gavol scan head.
since it avoid or is evitable to maintain within 50,000 hrs.
tiny beam
Type specification
Machine type SFM10B
Laser mode : Base mold
Wave length of laser: 1064nm
Laser power: 10W
Laser repetition frequency: 20kHz~100kHz
Marking speed: ≤8000mm/s
Min. focus facula diameter: 20μm
Repetition precision: 0.0025mm
Marking scope: 100×100mm
Power supply: 220V/50Hz/2kVA
Cooling way : Force-air cooling
Applicable fields
It is suitable to mark on all kinds of metal and partial nonmetal material,such as Electronic component,thecommunication,instrument and meter,aerospace ,war products,hardware etc
Optional configuration
Online flying marking ,Rotary marking ,USB interface control
