Detailed Product Description

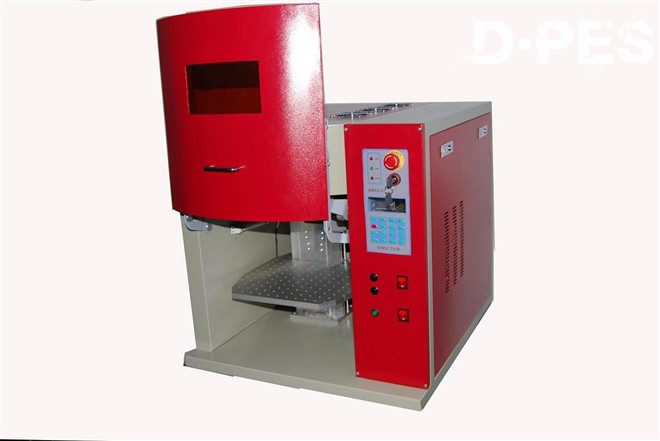

SCM 30F Online Flying Laser Marking Machine Equipment performance
SCM 30F Online Flying Laser Marking Machine adopts imported radio frequency laser (metal seal) and imported speedy gavol scanning system. All the fittings canmeet the pipelining processing contious dynamic on line with the proprietary warking control software. It can realized automatic edition and correction of characters, signs, graphs, images, bar codes, two-dimensional codes, automatically increased serial numbers.Marking has non-touched process, permanent effect, humanized operation, and stable running.
The extensive equipment performance, competitive of working continuously for 24-hour made it meet the demand of massive on-line and off-line industrialized production.
Applicable fields
Line:Baccy, pharmacy, food and beverage, alconol, health protection electyonics, art-gifts, leather, etc.
Material: Paper plastic, film, silver paper, mood, glass, pve, etc.
Optional configuration
USB port offline working
The main of technical parameters
|
Type specification
|
SCM10F / SCM30F
|
SYM50F
|
|
CO2 laser
|
RF laser - metal seal CO2 laser
|
YAG laser
|
|
Wave length of laser
|
10.64μm
|
1.064μm
|
|
Laser power
|
10W / 30W
|
50W
|
|
Marking scope
|
70×70mm select 110×110mm
|
|
Marking speed
|
≤8000mm/s
|
|
Pulse frequency of the laser
|
0120m / min
|
|
Repetition precision
|
0.2mm
|
|
Cooling
|
Forced-air cooling
|
Circulation water colling
|
|
Power supply
|
220V / 2kVA
|
380V / 5kVA
|
